Brand New 6Wheels ISUZU GIGA FVR Combine Vacuum Jetting Truck 12000Liters 13000Liters High Pressure Cleaning and Vacuum Sewage Suction Truck

The cleaning and suction truck, also known as the joint dredging truck, is a new type of specialized sanitation vehicle that combines the functions of a high-pressure cleaning truck and a suction truck. The highlight of this vehicle is its ability to clear blocked areas in the sewer that cannot be reached by human labor, hence it is called the joint dredging truck. The other functions of the car include floor flushing, sewage suction and discharge, and landscaping.

The cleaning and suction truck integrates functions such as flushing, dredging, suction, and reverse discharge. It is used for the suction, transportation, and discharge of various liquid and semi liquid substances, as well as sludge, feces, wastewater, suspended debris sludge, small bricks, crushed stones, and other media under various ditches and channels. It can also be used for emergency response to sudden environmental pollution accidents. This will greatly improve the efficiency of cleaning and suction trucks, enhance operational capabilities, and break through the use of advanced technology from domestic and foreign enterprises in previous cleaning and suction truck products. After digestion and absorption, vacuum technology and dual anti overflow pump devices can be fully utilized to better avoid tank overflow and extend the service life of vacuum pumps. The overall design structure of the vehicle is reasonable, with excellent performance, flexible and easy operation, and the addition of high-pressure cleaning truck function on the basis of suction trucks. One car dual-use, saving money and effort, cost-effective.

This vehicle is modified with Isuzu GIGA 6 × 4 heavy-duty chassis and belongs to the category of large capacity municipal sanitation vehicles. The tank capacity can be selected from 15~20m ³. Integrated vacuum suction and high-pressure water jet dredging dual functions, capable of suctioning septic tank manure, sewage sludge, sewage, mud, and oil stains, as well as using high-pressure water knives to flush and unblock blocked municipal pipelines. The vehicle has strong power and high vacuum suction, suitable for sewage removal and pipeline dredging projects in large urban pipelines, large sewage tanks, industrial parks, and large breeding farms. It supports customization of left-hand drive LHD and right-hand drive RHD, meeting export emission standards from multiple countries.

Chassis parameters
Chassis model: ISUZU GIGA 6 × 4
Drive form: 6 × 4 rear double axle
Engine: Isuzu 6HK1 series diesel engine, 300HP+, optional Euro 5/Euro 6 emissions
Transmission: Manual 9-speed gearbox
Driver's cabin: GIGA wide body luxury driver's cabin, can choose single row/half row, air conditioning, airbag shock absorber seats
Total weight: 25 tons, stable under heavy load
Upper configuration
Tank body: Large capacity black carbon steel tank body, optional 304/316L stainless steel, corrosion-resistant; Equipped with anti overflow liquid level alarm to prevent damage to the vacuum pump caused by sewage backflow; The large caliber flip cover at the tail of the tank can quickly dump and discharge slag; External maintenance ladder and safety guardrail for the tank body.

Vacuum system: Imported/domestically produced high vacuum pumps with large negative pressure and deep suction, capable of long-distance suction of sludge and manure.

High pressure water system: high pressure plunger pump, high pressure pipe roller+extended high pressure dredging hose, high pressure water jet breaks up clumped sludge, tree roots, and grease blockages in the pipeline.

Operation control system: hydraulic operation system, supporting local/wireless remote control operation; Red hydraulic valve group, stainless steel pipeline, equipped with drain outlet and quick connector.
Safety protection: yellow and black reflective barrier on the vehicle body, emergency pressure relief valve, liquid level alarm, explosion-proof protection for high-pressure pipelines.

A professional export sales team that provides professional, high-quality, and fast services
More Information, Please contact With Pinky, Whatsapp +86 15897603919



The Detail Specification of Brand New 6Wheels ISUZU GIGA FVR Combine Vacuum Jetting Truck 12000Liters 13000Liters High Pressure Cleaning and Vacuum Sewage Suction Truck:
✅  Isuzu GIGA heavy-duty chassis, 6 × 4 rear double axles with strong load-bearing capacity, durable and fuel-efficient engine, mature overseas parts supply, suitable for long-term high-intensity municipal operations
✅  Combining suction and high-pressure dredging, one vehicle can simultaneously complete pipeline dredging and sludge suction and transportation, significantly reducing equipment procurement costs
✅  Large tank capacity, large loading capacity per operation, reducing the number of round-trip transfers, suitable for large cities and large-scale factory projects
✅  The rear large door is used for self dumping and slag discharge, and heavy sludge and large debris can be directly dumped, making unloading convenient
✅  The anti-corrosion tank can be made of stainless steel material, which can adapt to the suction operation of corrosive sewage and chemical sludge
✅  LHD/RHD can be customized, adapted to road regulations in various countries around the world, and widely exported to overseas markets

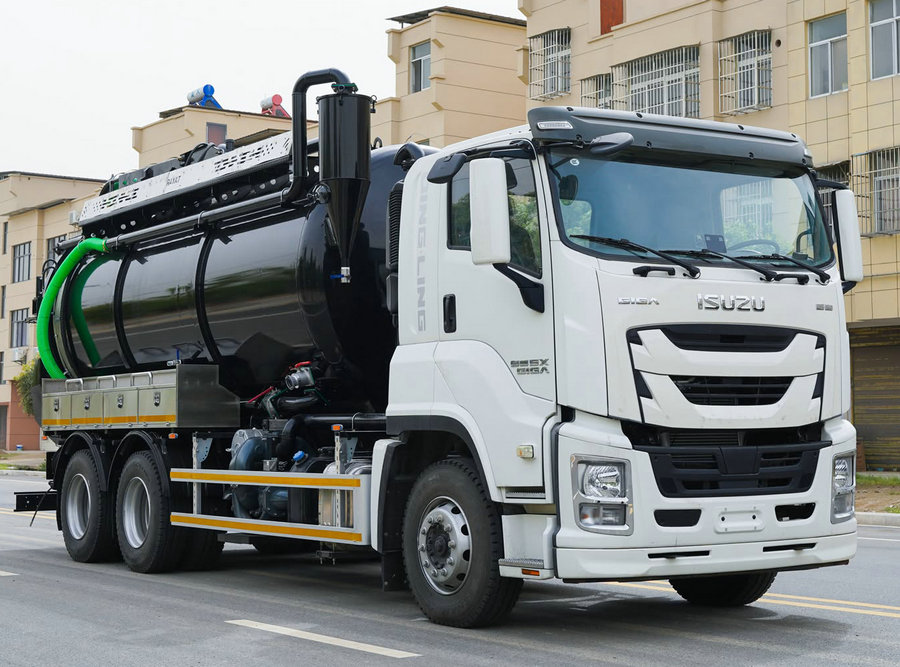

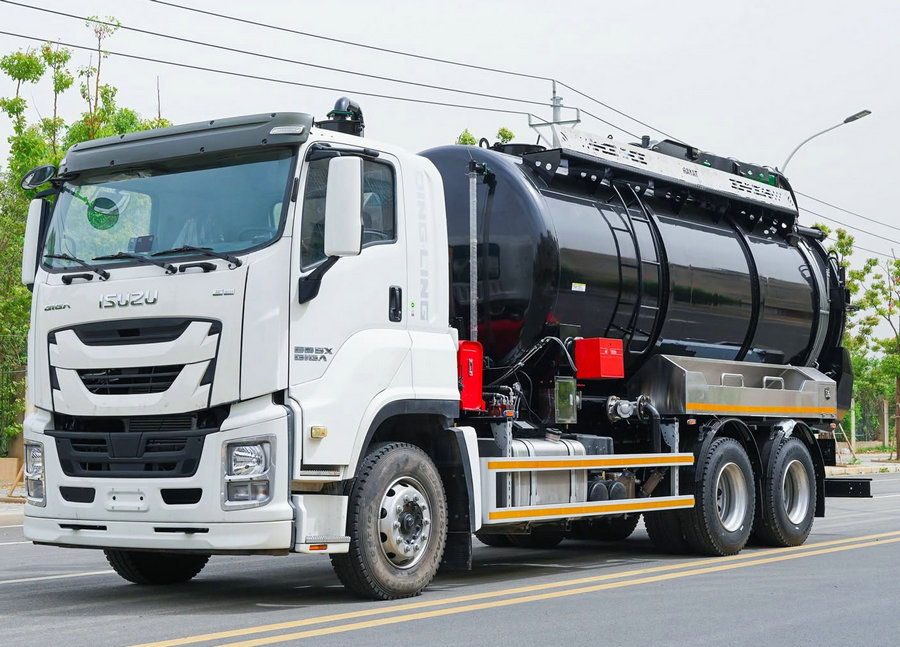

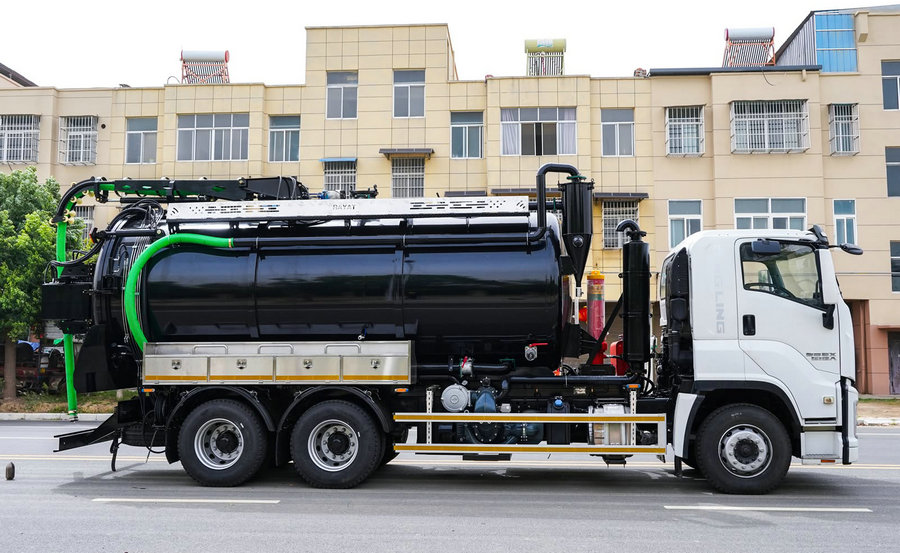

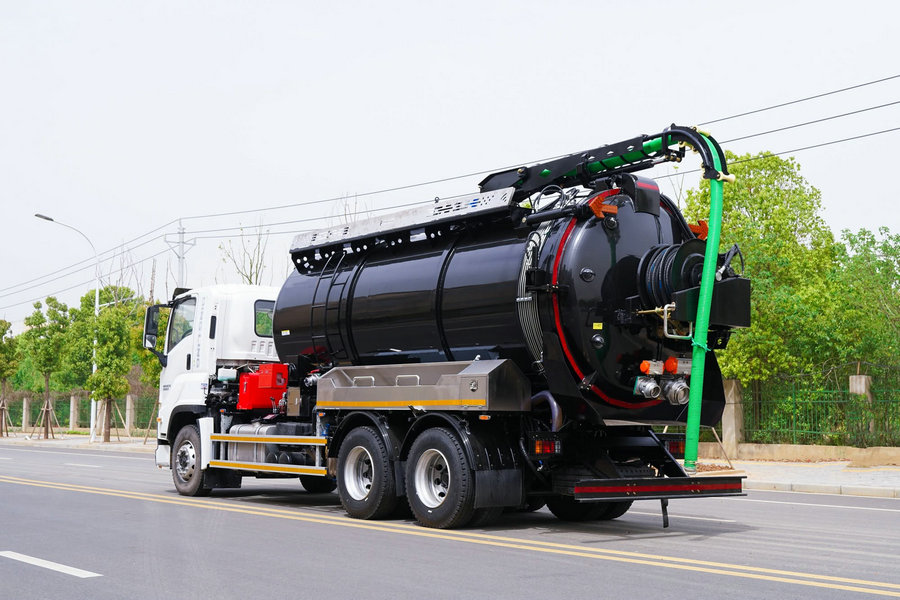

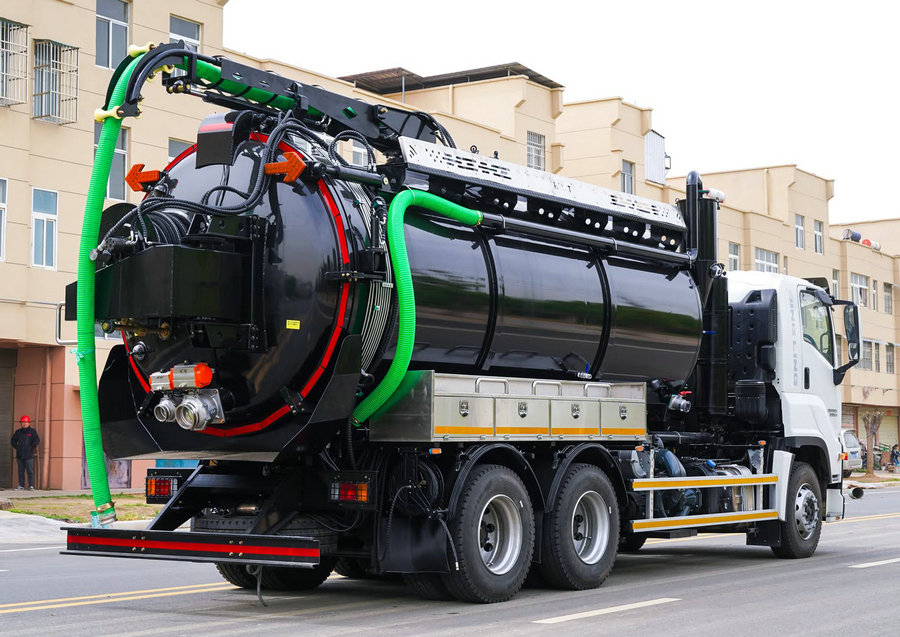

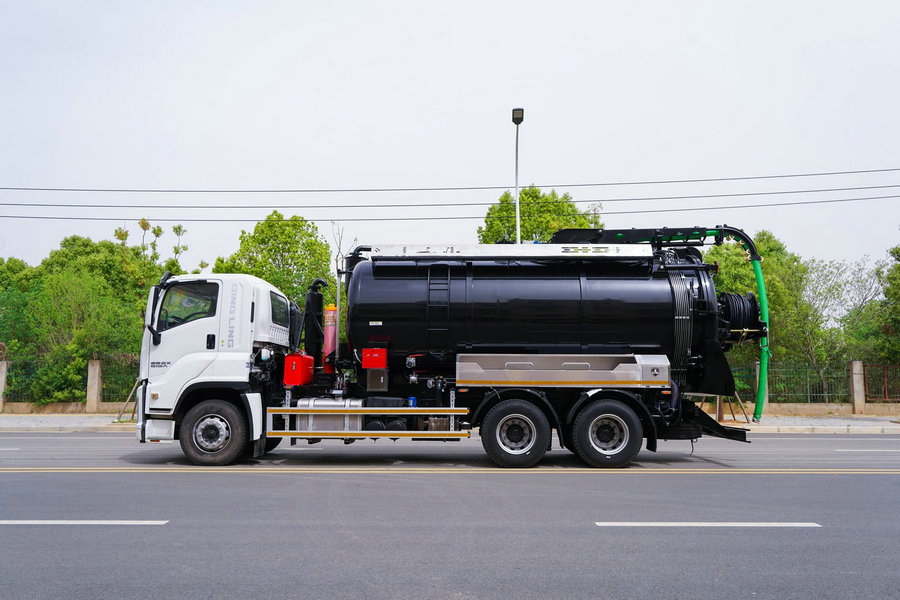

The Actual Pictures of Brand New 6Wheels ISUZU GIGA FVR Combine Vacuum Jetting Truck 12000Liters 13000Liters High Pressure Cleaning and Vacuum Sewage Suction Truck:

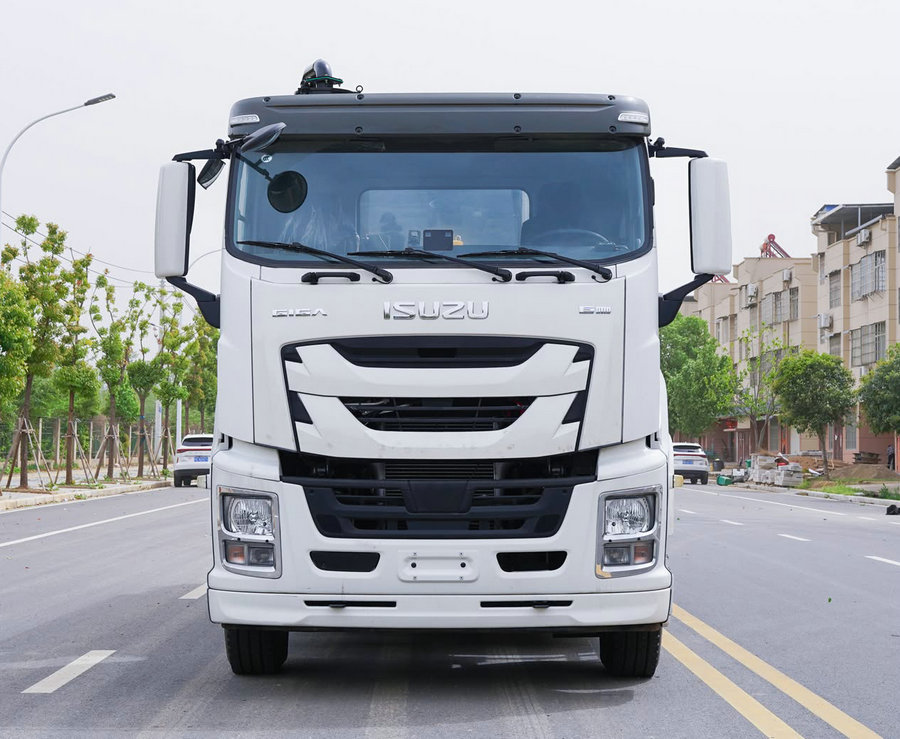

Built on genuine ISUZU heavy-duty chassis, Euro 5emission standard, fully compliant for worldwide import registration

Wheelbase: 4600+1370mm | Total Gross Mass:35000kg

6WG1-TCG61 engine, 338/460 horsepower, stable output for long-hour operation

Tiltable cab with full comfort configuration: Air-conditioning, power steering, central lock, electric windows, multi-function steering wheel, ABS & air brake system, smooth & safe driving experience

 Tank Body Details 7m3 clean water tank made of 6mm WISCO premium steel plate, manufactured with butt-joint welding craft,anti-corrosion & leak-proof for long service life.

Integrated sewage suction tank design, one vehicle finishes flushing & waste suction at the same time, no extra truck needed.

Powerful High-Pressure Jetting System Fitted with XO 350L high-pressure pump:

126kw power|1500rpm rotational speed

Max 180MPa pressure, 350L/min flow rate

Driven by vehicle PTO, jetting and suction functions can run simultaneously, greatly boost your work efficiency.

Standard Full Accessories

10 specialized nozzles to fit different pipeline & site scenarios

100m d22 PVC high-pressure resistant hose

Wireless remote control for high-pressure operation,easy to handle without climbing up & down

deal for sewer cleaning, septic waste & sludge removal.Tough, low-maintenance and cost-efficient.

	Isuzu 4H engine Displacement: 5.2L Maximum power: 151KW Maximum torque: 650N · m Better fuel atomization effect, more complete combustion, smoother operation, lower noise Strong power, low fuel consumption, reliable and durable Suitable for use in the Chinese environment
High quality chassis High load capacity chassis The frame is specially treated with electrophoresis in humid, severe cold, and saline alkali climates, which can adapt to various harsh weather conditions. The lightweight design is an advanced design standard, and the weight is about 1 ton lighter than similar models
	Comfortable driving cabin Excellent aerodynamic performance Control the width of the front part of the driver's cab, optimize the direction of wind resistance at the front corner of the vehicle, and adopt a streamlined shape to reduce wind resistance on the rear side of the vehicle, achieving optimal aerodynamic performance and helping to improve fuel consumption

Our company produces customized ISUZU Sewer Tank Truck for customers. After reasonable and professional design by engineers, technical workers cut, weld, install dump truck accessories, shape the Tipper body, polish the Dumper body, spray primer on the body, install the Dump body on the chassis, conduct semi-finished dump tests, and finally spray paint. The dump truck finished products are stored and debugged. Every step of the production process undergoes strict inspection in order to provide users with high-quality products.

6mm-thick cylindrical tank with reinforced hoops, formed in one go, automatically welded by robots, and can be made of stainless steel material	Reinforced anti wave board inside the tank

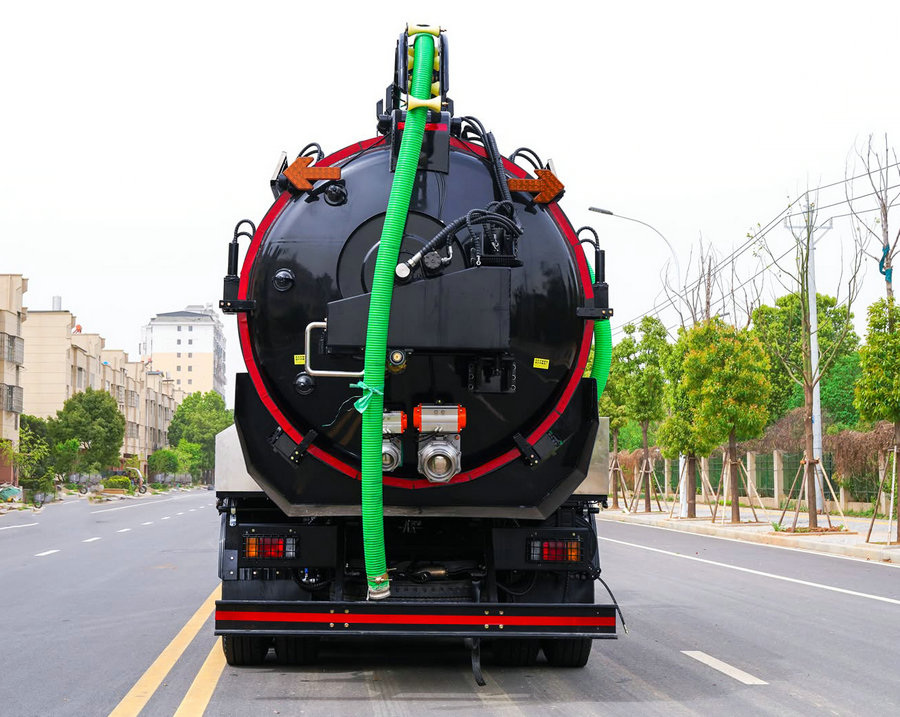

Hydraulic reinforced rear head, easy to operate	After the welding of the tank body is completed, rust prevention treatment should be carried out first, and then it should be loaded onto the vehicle to increase the service life of the tank body
Sewage Suction Truck, Customization  tank capacity from 2cbm to 25cbm sewage suction tank trailer	High quality installation accessories
High quality vacuum Pump optional SAMSON/CVS/JUROP/MORo Vacuum pump	Customization Color Or LOGO

We have 20 years of experience in exporting specialized vehicles and can provide customized export services according to user requirements.

Export Document:
SGS, GCC,CCC

Specialized export transportation method:
---- Reasonably select transportation mode based on the size of the vehicle and the characteristics of the destination port
     Container, Bulk Shippment, flat rack
---- Safe, efficient, and fast
