| serial | wheelbase | Middle Heavy Duty ISUZU GIGA Model (FVR FVZ) | 240HP / 300HP ISUZU GIGA Equipment | |||||
| FVR /FVZ Middle Heavy Duty | 1850+2980+1370 | QL2310GFSHY | 1.ISUZU 4x2 6Wheels, 6HK1-TCG61 / 240HP 6-Cylinder Engine, Fast 8 Forward, front axle: 6.3 T or 9Tons, rear axle: 13Tons 2.ISUZU 6x4 10Wheels,6HK1-TCG60 / 300HP 6-Cylinder Engine, Fast 9 Forward,front axle: 7Tons, rear axle: 10Tons 3.Brand new Isuzu 5X level VC61 driver's cab, equipped with air conditioning, steering assistance, central locking system, electric doors and windows, multifunctional steering wheel, multifunctional LCD instrument panel, ABS, and air brake 4.Optional air suspension seats or air suspension cabin 5.Normal ABS status, equipped with front wheel disc brake and rear wheel drum brake, tire explosion-proof and tire pressure monitoring TPMS. 6.Speed above 90 kilometers per hour: EBS+ESC+LDWS+FCW, That is, front and rear drum, tire pressure monitoring TPMS, tire explosion-proof emergency, adding EBS electronic control braking system, ESC automotive electronic stability control system, lane departure warning LDWS, forward collision warning FCW. |
|||||
| 1850+4575+1370 | QL1310FVFHY | |||||||
| serial | wheelbase | Heavy Duty ISUZU VC66 GIGA Model | 350HP / 380HP / 420HP / 460HP / 520HP ISUZU VC66 GIGA Equipment | |||||
| VC66 reinforced heavy-duty truck Euro 6 | 1850+3000+1370 | QL1310U4TDHCY | 1.ISUZU Euro 6 Engine, 6UZ1-TCG61 350HP / 6UZ1-TCG61 380 HP / 6WG1-TCG60 420HP/ 6WG1-TCG61 460HP / 6WG1-TCG62 520HP 2.Gear box: ZF 8 Forwards or Fast 12 forwards 3.configurations: equipped with a new Isuzu VC61 level cabin, air conditioning, steering assistance, central locking, electric doors and windows, multifunctional steering wheel, multifunctional LCD instrument panel, with ABS and air brake. 4.front axle: 7.5 Tons rear axle: 13-20 Tons or over limited axles loading 9 ton – 18 Tons , rear axle loading: 13 tons to 26 Tons 5.tire: 295/80R22.5 or 12R22.5 optional: 385/65R22.5 or rear tire 315/80R22.5 6.Optional air suspension seats or air suspension cabin 7.Normal ABS status, equipped with front wheel disc brake and rear wheel drum brake, tire explosion-proof and tire pressure monitoring TPMS. 8.Speed above 90 kilometers per hour: EBS+ESC+LDWS+FCW, That is, front and rear drum, tire pressure monitoring TPMS, tire explosion-proof emergency, adding EBS electronic control braking system, ESC automotive electronic stability control system, lane departure warning LDWS, forward collision warning FCW. |
|||||
| 1850+2980+1370 | QL2310U4TDHY | |||||||
| 1850+4575+1370 | QL1310LCYHY | |||||||
| 1850+4575+1370 | QL1320W6VDHY | |||||||
| 2100+4325+1370 | QL5440TZZW6VDHY | |||||||
| 2100+4325+1370 | QL5440TZZW7VDHY | |||||||

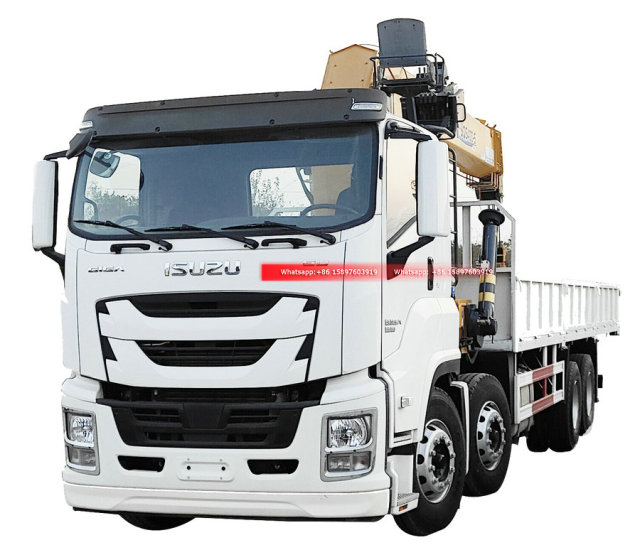

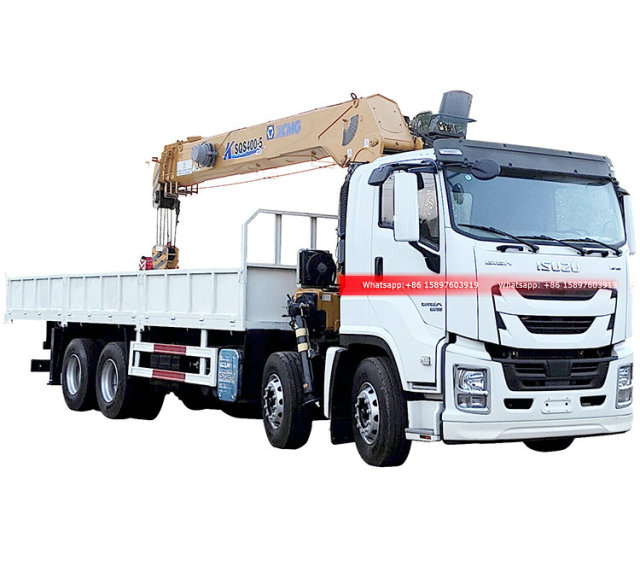

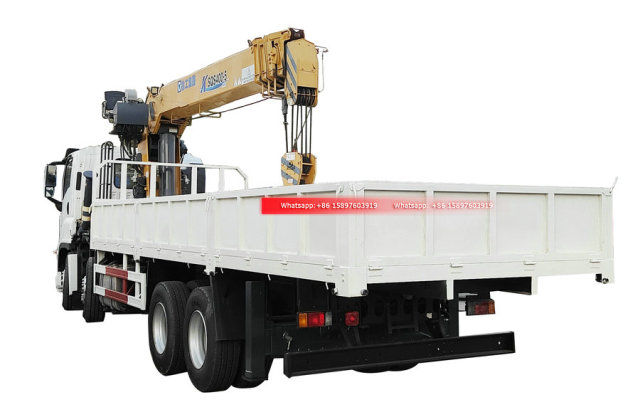

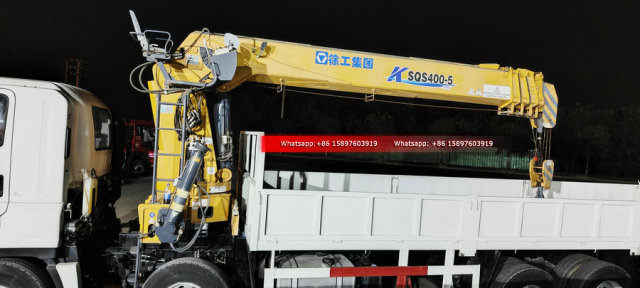

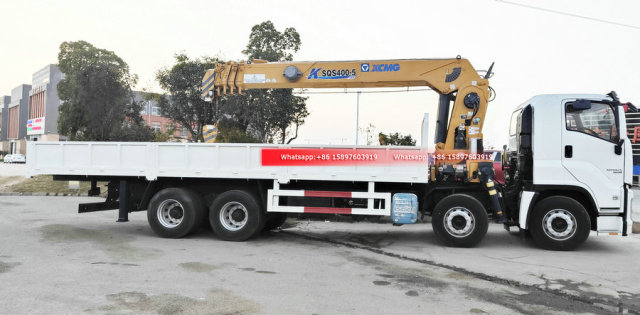

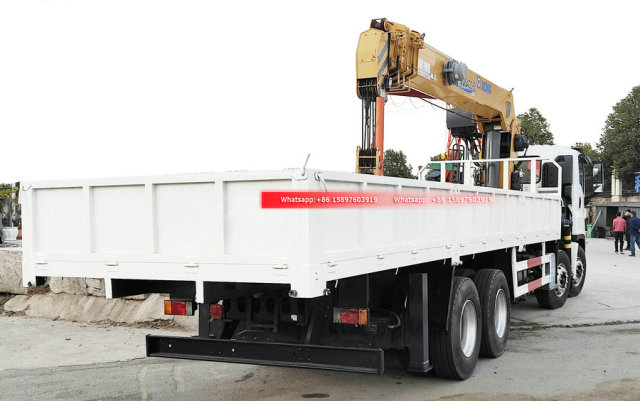

XCMG Brand SPS400 Crane parameter:
| item | unit | SQS500-5 |
| Max.lifting torque | kN·m | 430 |
| Max. lifting mass | kg | 16000 |
| Max. hydraulic arm length | m | 21.77 |
| ROTATION | ° | 360 |
| Leg span | mm | 2436-8396 |
| Installation Space | mm | 1340 |
| Max. working pressure | MPa | 28 |
| referral traffic | L/min | 80+50 |
| Email Capacity | L | 240 |
| weight | kg | 6880 |
 |
 |
 |
 |
 |
 |
|
transport
|
Board house handling and transportation | Hanging wire pole |
 |
 |
 |
|
Housing construction
|
Construction site suspended steel pipe | Transplanting seedlings |
 |
 |
 |
|
Road and bridge construction
|
Highway construction | Road clearing |
| Isuzu's high-quality chassis is suitable for various modifications Rich engine power specifications, wheelbase series, and load capacity combinations of more than 10 modified vehicle chassis can meet various installation modification needs; |
| The frame of ISUZU GIGA 5X VC61 Cabin Truck High load-bearing capacity frame: Adopting 258 × 80 × 10 specifications, the overall U-shaped structure can meet both heavy load requirements and various modification needs. |
| axle Front axle: The integral end fist shaped F63 front axle is produced using world advanced forging equipment and technology, with strong load-bearing capacity, a maximum load capacity of 6.3 tons, and stable and reliable quality. Rear axle: The RT210 rear axle is produced using the world's advanced stamping, welding, machining, and assembly production lines and processes, with a load-bearing capacity of 21 tons, which can meet the heavy load requirements of users. |
| Operation of 4x2 ISUZU GIGA 5X Cabin Truck: Steering controllability: Equipped with hydraulic power steering device and scientifically designed steering trapezoid, making steering operation easy. The steering wheel angle and height can be adjusted, making it easy for drivers of all shapes to operate; Accelerator pedal control: lightweight, effortless, and easy to operate; Shift control: lightweight, effortless, and clear gear positions. |
 |
Isuzu 4H engine Displacement: 5.2L Maximum power: 151KW Maximum torque: 650N · m Better fuel atomization effect, more complete combustion, smoother operation, lower noise Strong power, low fuel consumption, reliable and durable Suitable for use in the Chinese environment |
| High quality chassis High load capacity chassis The frame is specially treated with electrophoresis in humid, severe cold, and saline alkali climates, which can adapt to various harsh weather conditions. The lightweight design is an advanced design standard, and the weight is about 1 ton lighter than similar models |
 |
 |
Comfortable driving cabin Excellent aerodynamic performance Control the width of the front part of the driver's cab, optimize the direction of wind resistance at the front corner of the vehicle, and adopt a streamlined shape to reduce wind resistance on the rear side of the vehicle, achieving optimal aerodynamic performance and helping to improve fuel consumption |
We have 20 years of experience in exporting specialized vehicles and can provide customized export services according to user requirements.
|
